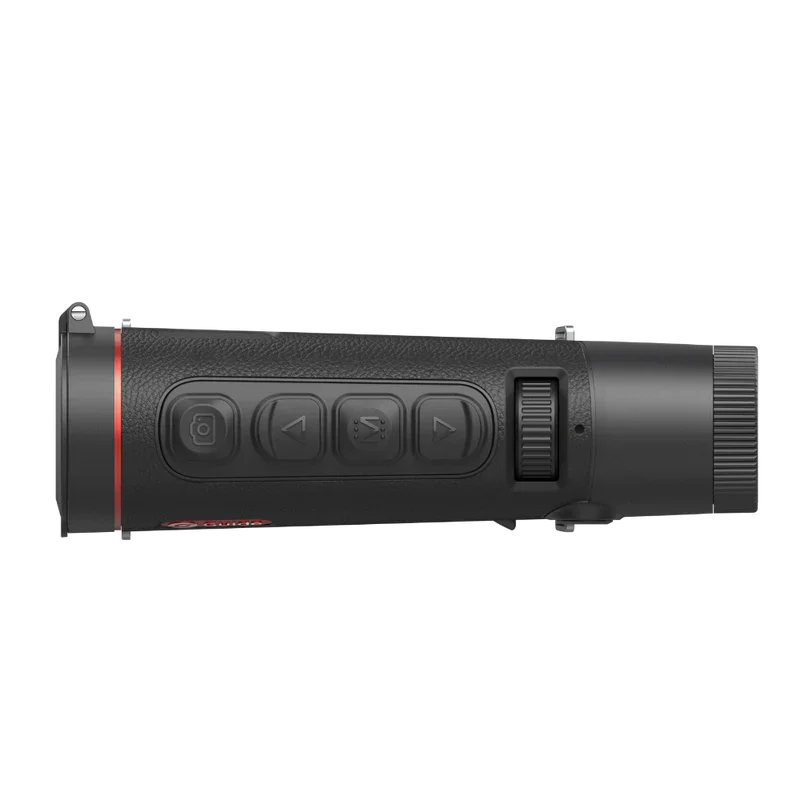

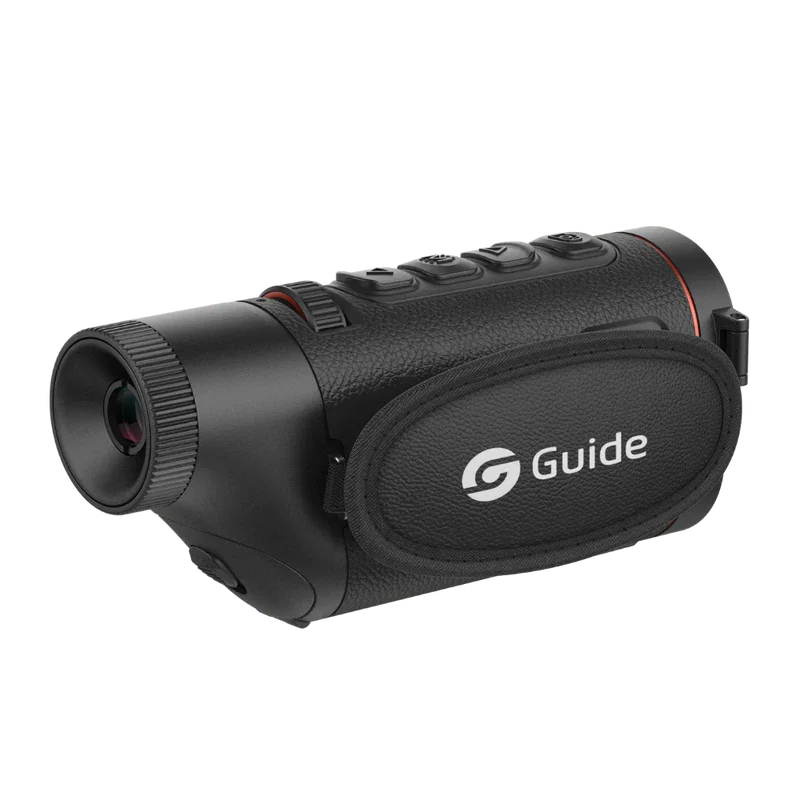

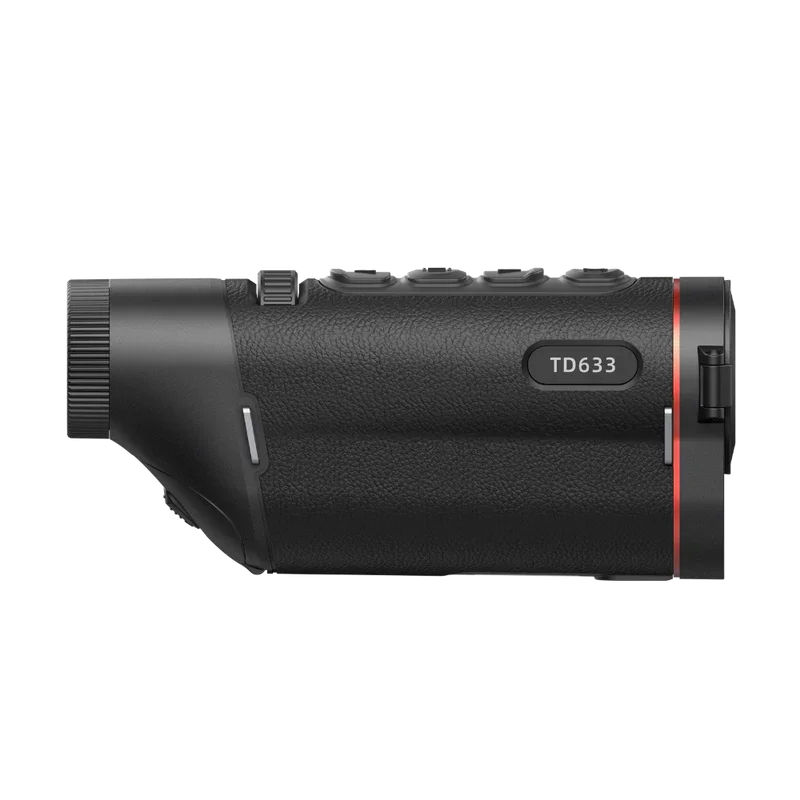

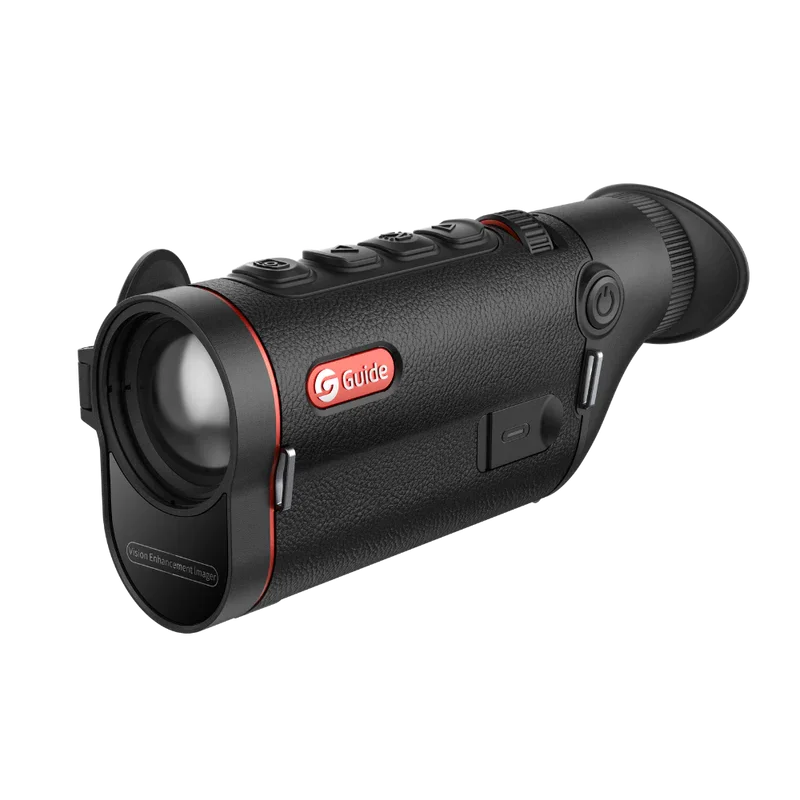

Guide Thermal Monocular - TD633

TD633 Thermal Monocular 2X 640x512 35mm

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equiped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.

Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.

NEW TD GEN 3

• 640×512@12μm, 20mK Detector

• One-handed Easy fingertip focus

• 1090yd Laser Rangefinder

• 10 Hours Battery

• 10-Year Warranty

Sensor

Type Uncooled VOx Infrared Detector, 8 to 14μm

Resolution 640×512@12μm

NETD 20mK

Frame rate 50Hz

Lens

Objective lens 35mm F1.0

Field of view 12.5°×10°

FOV m@100m 22×17

Magnification 2.0x~16x

Detection range 1800m/1950yd

Focus Manual

Digital Zoom 8x

Display

Display type 0.36'' AMOLED 1280×960

Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Eyepiece Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware

WIFI 2.4G, 5G

Interface USB-C

Others Microphone, Bluetooth

System

Recording function Photo/Video (Audio recording included)

Memory capacity 32GB

Power

Battery type Single, Replaceable 18650 Battery

Operating time 10 hours

Environmental

Operating temp. -20°C to 50°C / -4°F to +122°F

Encapsulation IP67

Physical

Weight (g/oz) 376/13.26

Size (mm/in) 159×54×74/6.26×2.13×2.91

Standard Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card

Optional Bluetooth Remote Control, 18650 Battery
